Anchorage

详细介绍

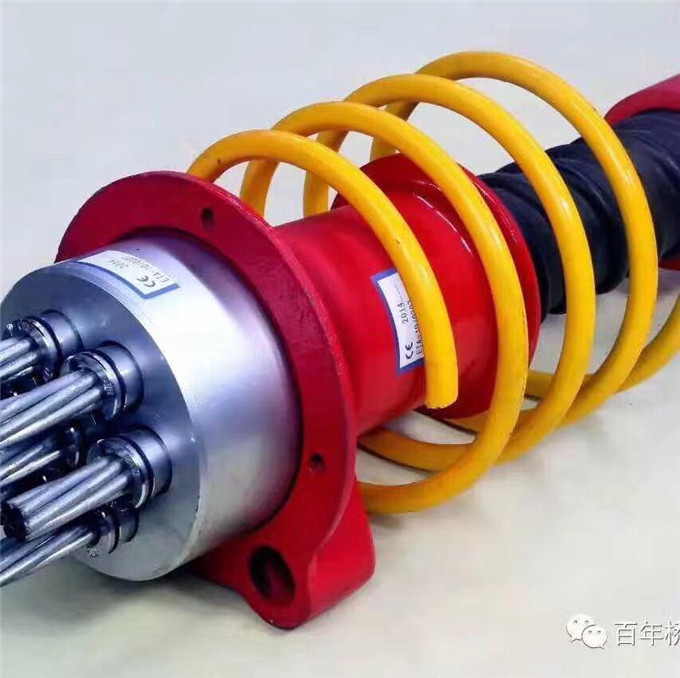

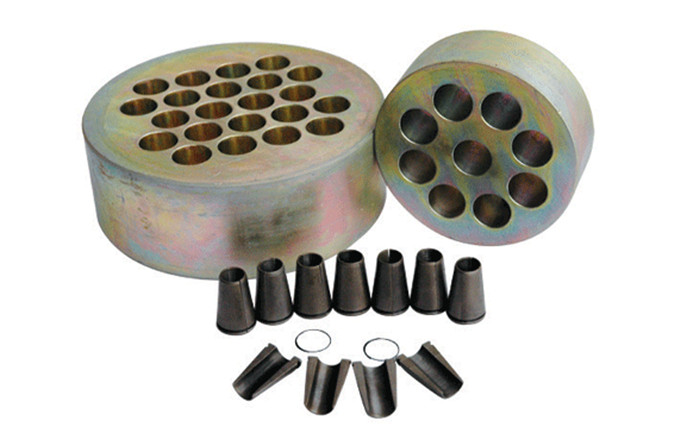

Anchorage
Reference Index
Type	Pcs of PC strand root	Anchor plate ΦABΦD	Bellows ID ΦD	Anchor ring ΦE*F	Spiral reinforcement		Tension jack supporting model
Type	Pcs of PC strand root	Anchor plate ΦABΦD	Bellows ID ΦD	Anchor ring ΦE*F	ΦGΦHL	Laps	Tension jack supporting model
YJM15-1	1	8080Φ12		Φ45*45	70630	4	YDC260Q(YDC240Q)
YJM15-2	2	13570Φ58	50	Φ78*45	100840	4	YCW100B
YJM15-3	3	13570Φ58	50	Φ88*48	100840	4	YCW100B
YJM15-4	4	13680Φ62	55	Φ98*48	1301040	4	YCW100B
YJM15-5	5	14680Φ62	55	Φ103*48	1401050	4	YCW100B YCW150B
YJM15-6	6	162100Φ78	70	Φ117*48	1601250	4	YCW150B
YJM15-7	7	162100Φ78	70	Φ117*50	1601250	4	YCW150B YCW250B
YJM15-8	8	176120Φ88	80	Φ127*50	1701450	5	YCW250B
YJM15-9	9	183120Φ90	80	Φ137*50	1801450	5	YCW250B
YJM15-10	10	210120Φ100	90	Φ147*50	2101460	5	YCW250B
YJM15-11	11	210140Φ100	90	Φ157*50	2101460	5	YCW250B
YJM15-12	12	210140Φ100	90	Φ157*50	2101460	5	YCW250B
YJM15-13	13	210140Φ100	90	Φ157*50	2101460	5	YCW350B
YJM15-14	14	234160Φ100	90	Φ167*60	2301660	5	YCW350B
YJM15-15	15	234160Φ100	90	Φ167*60	2301660	5	YCW350B
YJM15-16	16	244180Φ100	90	Φ177*60	2301660	5	YCW350B YCW400B
YJM15-17	17	250180Φ100	90	Φ187*65	2301660	5	YCW350B YCW400B
YJM15-18	18	265200Φ110	100	Φ187*65	2501660	5	YCW400B
YJM15-19	19	265200Φ110	100	Φ187*65	2501660	6	YCW400B YCW500A
YJM15-20/21/22	20/21/22	310240Φ130	120	Φ215*70	3001860	6	YCW500A
YJM15-23	23	310240Φ140	130	Φ217*70	3002260	6	YCW650A
YJM15-25/26/27	25/26/27	350290Φ140	130	Φ260*90	3102260	7	YCW650A
YJM15-30/31	30/31	370290Φ150	140	Φ290*105	4002060	8	YCW900A
YJM15-34/37	34/37	460340Φ170	160	Φ320*112	4502060	8	YCW900A
YJM15-43/44	43/44	500450Φ170	160	Φ345*130	4702060	8	YCW1200A
YJM15-54/55	54/55	500510Φ170	160
