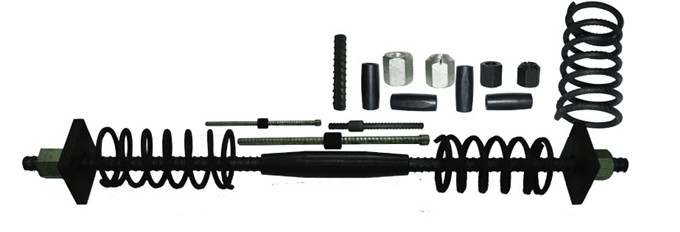

PC BARS

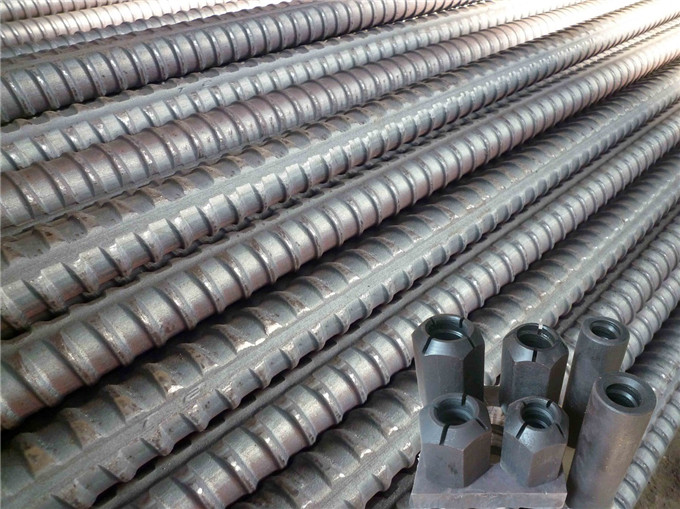

Screw thread steel bars for the prestressing of concrete are used for permanent works:
Such as it is widely used in large water conservancy projects, industrial and civil
construction of continuous beam and large frame structure, road, rail and anchor engineering of large and medium span Bridges, nuclear power plants. It is well established for its connection,
anchor, strong adhesion, tensioned anchorage safe and reliable, construction is convenient wait
for an advantage, but save steel, reduce component size and weight.
Such as temporary steel pedestal anchoring, and support the dam templates, etc.
These reinforced with sufficient strength to withstand the structure features of heavy load, and the applying prestress and balance structure in the later of the external load.
We have a professional design team, provide technical support to our customers.
The PC-BARS ACCORDING : GB/T20065-2016
GRADE : PSB785/980 A% 5D ≥ 8% PSB830/1080 A% 5D ≥ 7%
PSB930/1080 A% 5D ≥ 7% PSB1080/1230 A% 5D ≥ 6%

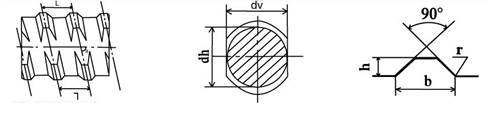

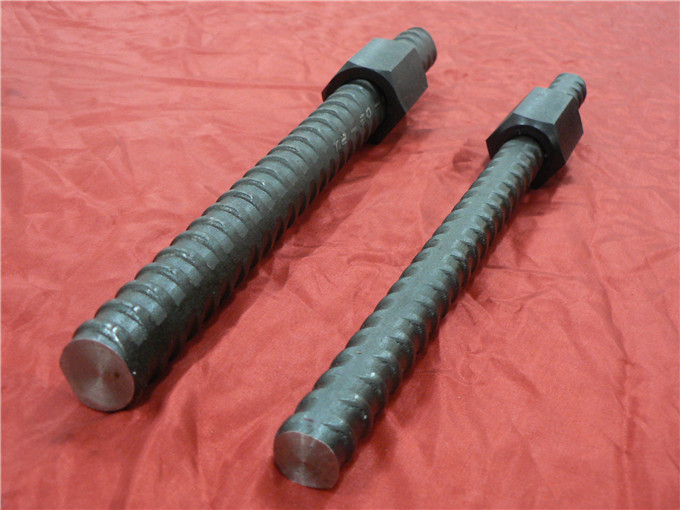

SHAPE:
SIZE mm | dh mm | Dv mm | h mm | b mm | L mm |
15 | 14.7 | 14.4 | 1 | 4.2 | 10 |
25 | 25 | 25 | 1.6 | 6 | 12 |
32 | 32 | 32 | 2 | 7 | 16 |
36 | 36 | 36 | 2.2 | 8 | 18 |
40 | 40 | 40 | 2.5 | 8 | 20 |
50 | 50 | 50 | 3 | 9 | 24 |
57.5 | 57.5 | 57.5 | 3 | 9 | 20 |
63.5 | 63.5 | 63.5 | 3 | 12 | 22 |
75 | 75 | 75 | 3 | 12 | 20 |
Load table:
Nominal Diameter | Cross- section area | Linear weight | Grade 785/980 Yield≥785Mpa tensil≥980Mpa | Grade 830/1030 Yield≥830Mpa tensil≥1030Mpa | Grade 930/1080 Yield≥930Mpa tensil≥1080Mpa | Grade 1080/1230 Yield≥1080Mpa tensil≥1230Mpa |
(mm) | (mm2) | (kg/m)
| Yield load（KN） | Ultimate load(KN) | Yield load（KN） | Ultimate load(KN) | Yield load（KN） | Ultimate load(KN) | Yield load（KN） | Ultimate load(KN) |
15 | 177 | 1.47 | 139 | 173 | 147 | 182 | 164 | 191 | | |
25 | 491 | 4.1 | 385 | 481 | 407 | 506 | 457 | 530 | 530 | 604 |
32 | 804 | 6.65 | 631 | 788 | 667 | 828 | 748 | 868 | 868 | 989 |
36 | 1018 | 8.41 | 799 | 998 | 845 | 1048 | 947 | 1099 | 1099 | 1252 |
40 | 1257 | 10.34 | 987 | 1232 | 1043 | 1294 | 1169 | 1357 | 1357 | 1546 |
50 | 1963 | 16.28 | 1541 | 1924 | 1630 | 2022 | 1826 | 2120 | 2120 | 2415 |
57.5 | 2596 | 21.42 | 2038 | 2544 | 2155 | 2674 | 2414 | 2804 |
|
|
63.5 | 3167 | 26.5 | 2486 | 3104 | 2629 | 3262 | 2945 | 3420 |
|
|
75 | 4418 | 36.9 | 3468 | 4330 | 3667 | 4550 | 4109 | 4770 |
|
|
Note.1:Diameter 20mm,28mm,57.5mm,60mm,63.5mm,70mm,75mm or other size available upon request and subject minimum order Quantities.
Note.2: Grade 500 ,Grade 555 , Grade 680 or other Grade available upon request and subject minimum
order Quantities.
